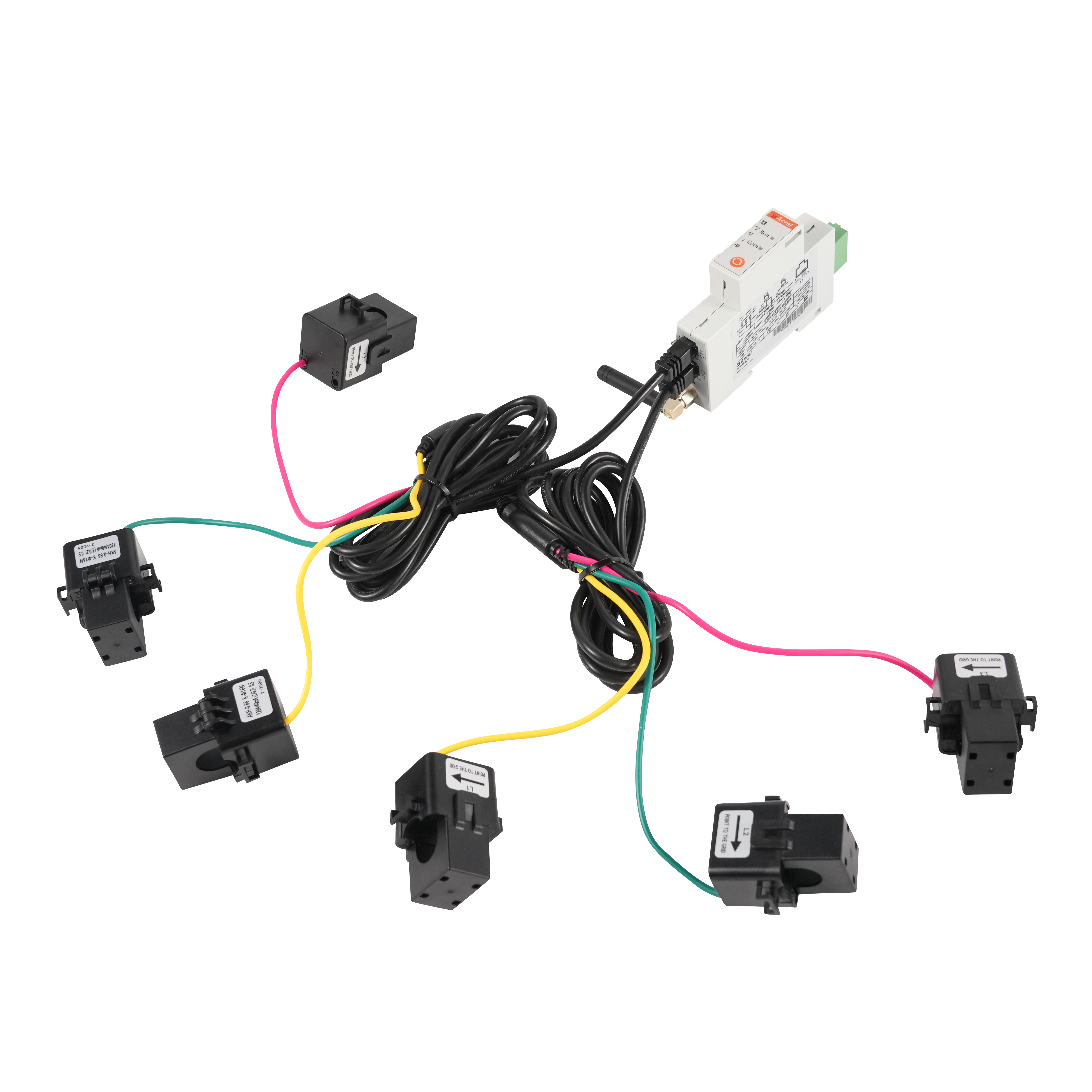

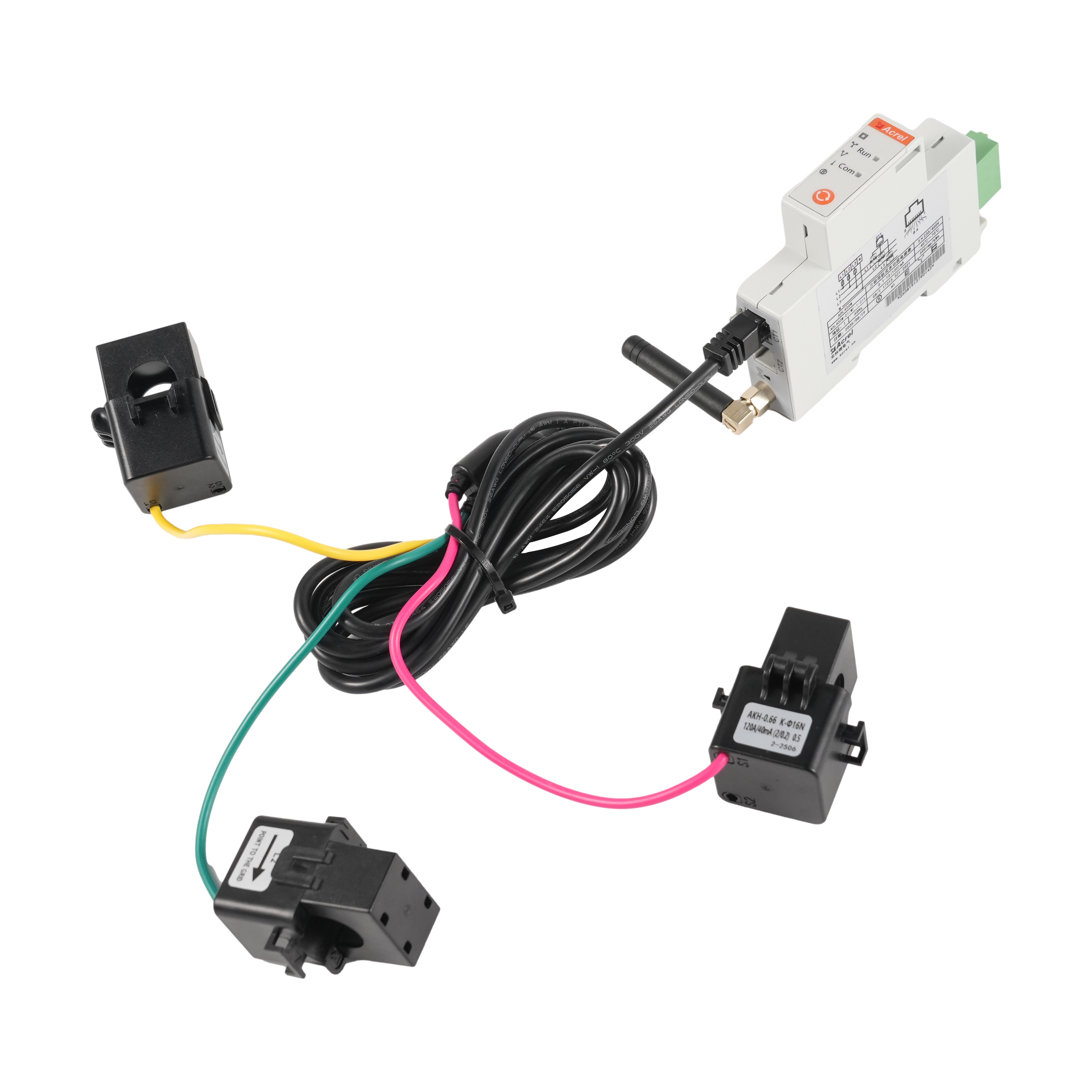

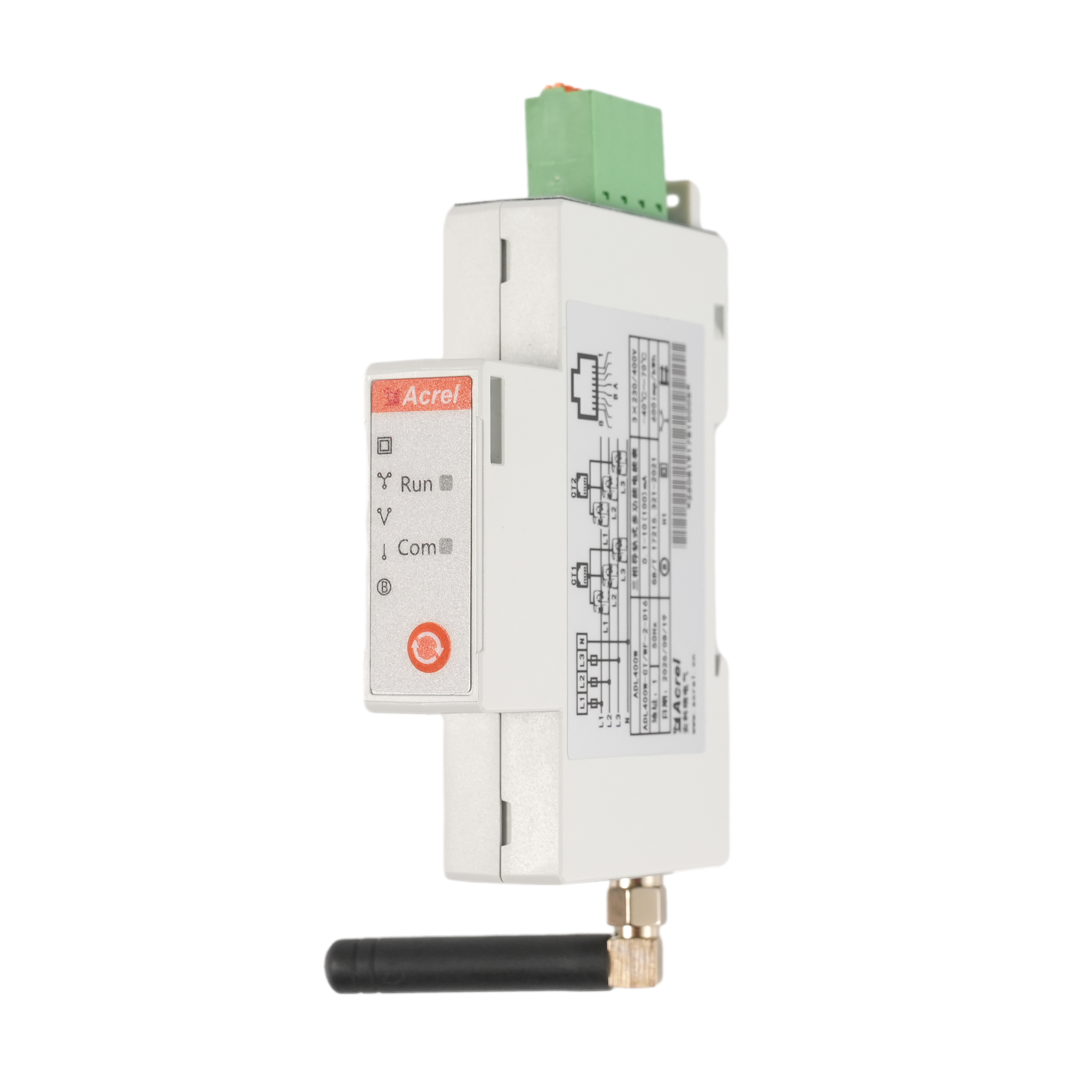

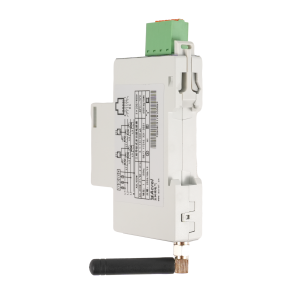

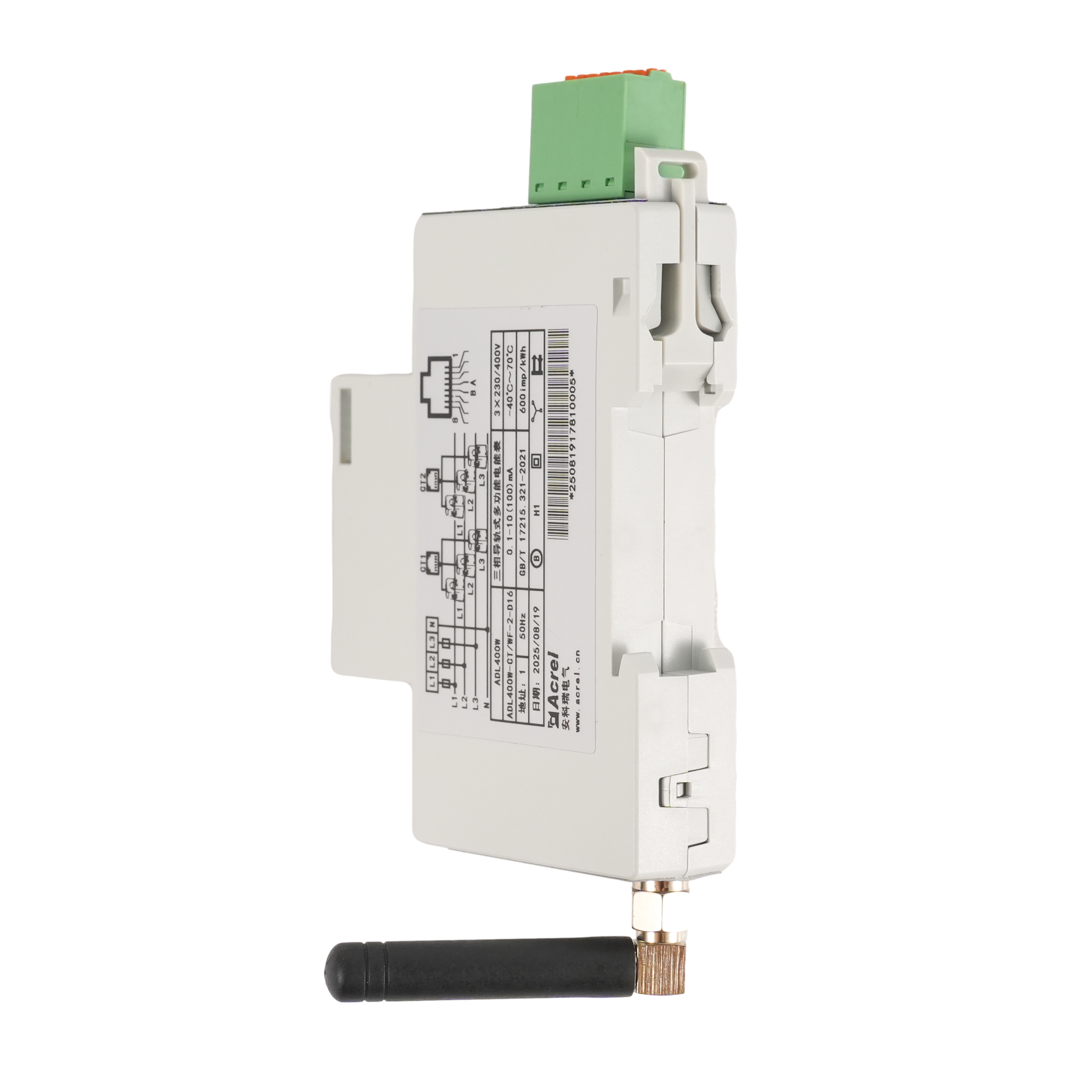

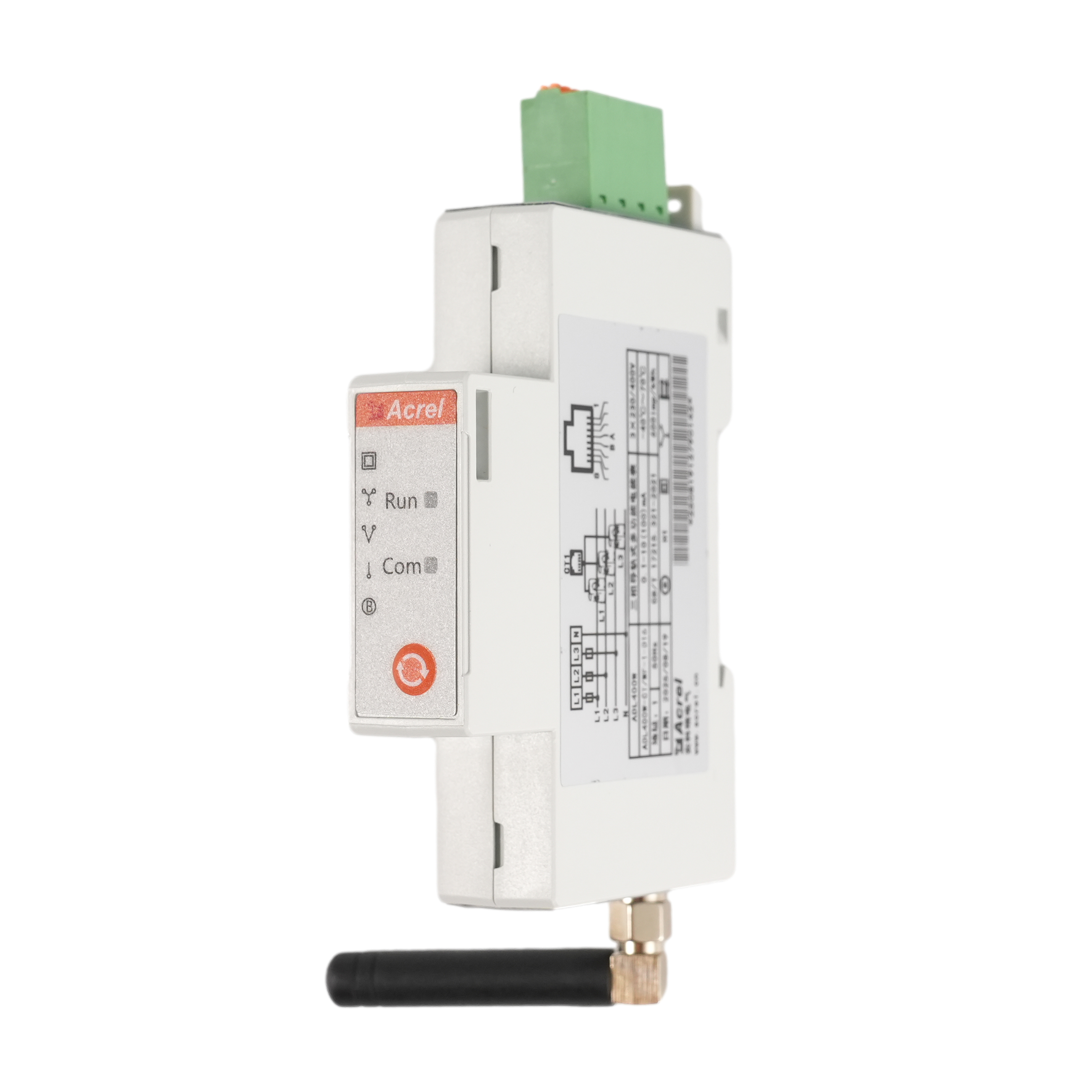

ADL400W WIFI Dual-channel Bidirectional 3-phase Energy Meter

● Measurement: 3-phase dual-channel bi-directional AC Energy (kWh), Power, Current, Voltage and etc
● Response Rate: 50ms (current, voltage, power)
● Rated Voltage: 3×230/400Vac (direct connect)
● Rated Current: 120A AC (via paired CT)
● Communication: WiFI & LoRa (MODBUS) ; RS485 (MODBUS-RTU)

Send email to us Download as PDF

Product Detail

Certificate

FAQ

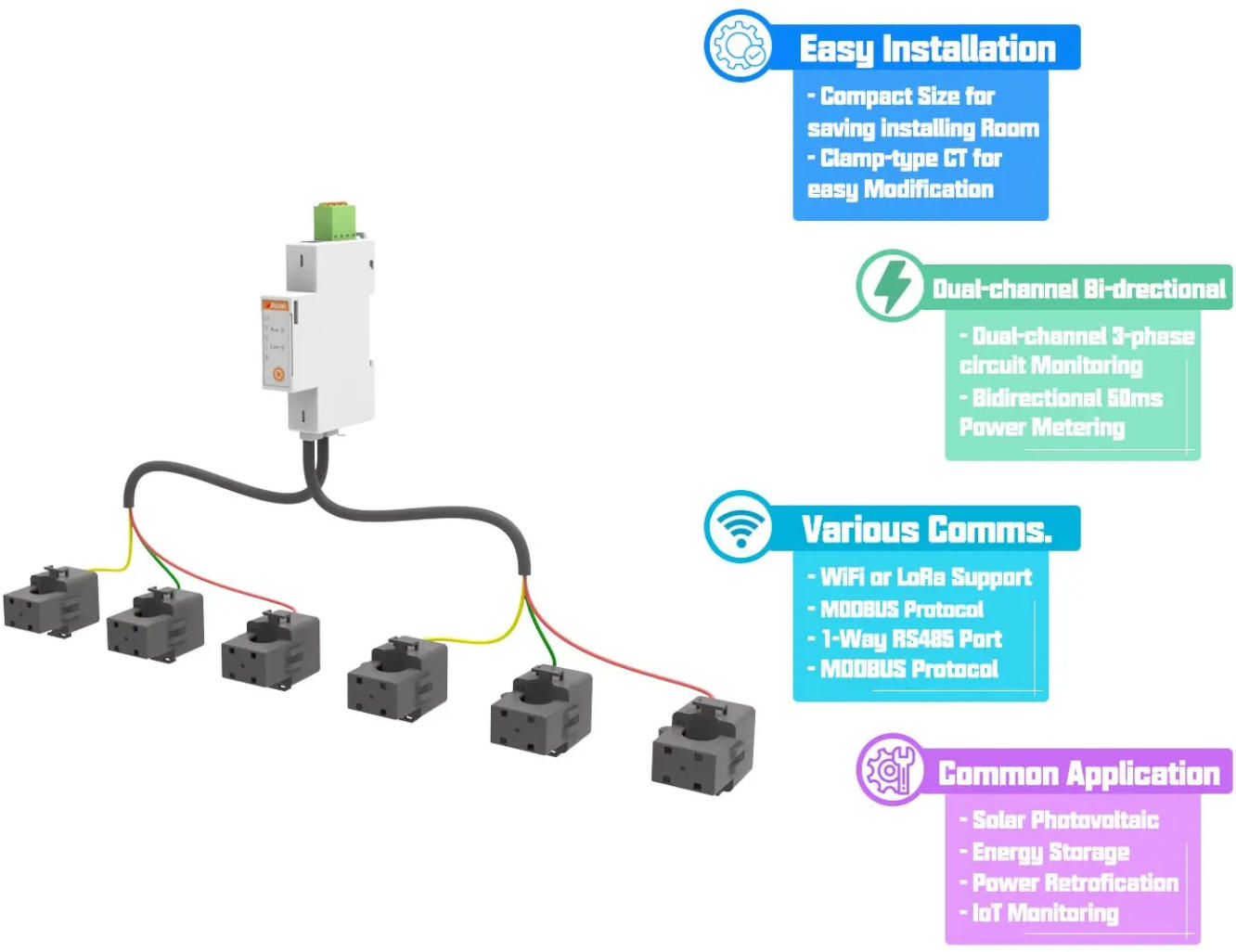

ADL400W Wireless Dual-channel Three-phase Energy Meter

an intelligent instrument mainly designed for new energy power generation systems such as photovoltaic grid-connected system, micro inverter system, energy storage system, AC coupling system, etc. The product has the advantages of high precision, small volume, high respondent speed and convenient installation. It can monitor and measure real-time power and other power parameters, support protocols such as Modbus-TCP and http, and communicate with inverters or energy management systems (EMS) via Wi-Fi or Lora communication to achieve functions such as anti-reverse flow, regulating power generation, and battery charging and discharging. It can be bidirectionally measured to achieve energy management for household distributed photovoltaic systems.

Characteristic

Communication

RS485 (Modbus-RTU)

Optional WiFi & LoRa Comms

Rated U and I

3×230/400Vac
120A AC (via paired CT)

Monitor

U, I, P, Q, PF, kWh,

Power measure

Technical Parameters

Item			Performance Parameters
Model Series			ADL200	ADL400
Measurement	Grid		Single-phase	Three-phase four-wire
	Voltage	Nominal voltage	230V	3×230/400V
		Input Range	0.8Unom ~ 1.2Unom
		Overload	1.2 times rating (continuous)2 times the rating for 1 second
		Power consumption	<2w, <10VA
		Accuracy class	Error ±0.5%
	Current	Minimum current	0.3A
		Transitional current	1.5A
		Basic current	30A
		Maxinum current	D16：Imax = 120A
		Short-termovercurrent	30 times the maximum current for 20ms
		Power consumption	<1W, <1VA
		Accuracy class	Error ±0.5%
	Power		Active, reactive, apparent power, error ±1.0℅
	Grid frequency		50Hz, error ±0.5%
	Response rate		50ms (voltage, current, power)
	Installation category		CAT III
	overvoltage level		OVC III
Metering	Active electric energy		Class 1or B
electromagnetic compatibility			E2
Security	Power frequency withstand voltage		Between communication and signal input, AC3kV 1min
	Insulation resistance		Input and output terminals to casing >100MΩ
Communication	RS485 interface		Modbus RTU protocol; addr:1~ 247;Baud rate:1200bps-38400bps
	Wi-Fi		Protocols: Modbus-TCP, Http, etc. Operating frequency band: 2.4GHz
Environment	Operating temperature range		-25℃~+55℃
	Operating temperature range		-40℃~+70℃
	Storage temperature		-40℃~+85℃
	Relative humidity		≤95% (without condensation) "Not suitable for damp environments"
	Altitude		≤2000m
IP rating			IP20 on terminal strip without protective housing and IP51 in protective housing, per IEC 60529
Pollution Degree			II
UC Degree			III
Installation environment			Indoor use
Protect Degree			Class II (Double Insulation)
usage environment			Cabinet mounted(The outer shell cannot be touched)
usage environment			M1
Transformer Safety characteristics			Insulation resistance: greater than 1000 MΩ under normal conditions； Electric strength resistance: It can withstand 4000V, 50Hz power frequency for 1 minute； Flame retardancy: Conforms to UL94-V0 level；

Dimension

Instrument Dimensions

Transducer Dimensions

Note:

1）In the lead wire section of the current transformer, the yellow wire is connected to Phase A, the green wire is connected to Phase B, and the red wire is connected to Phase C.

2）The tolerance of the dimensions is 1mm.

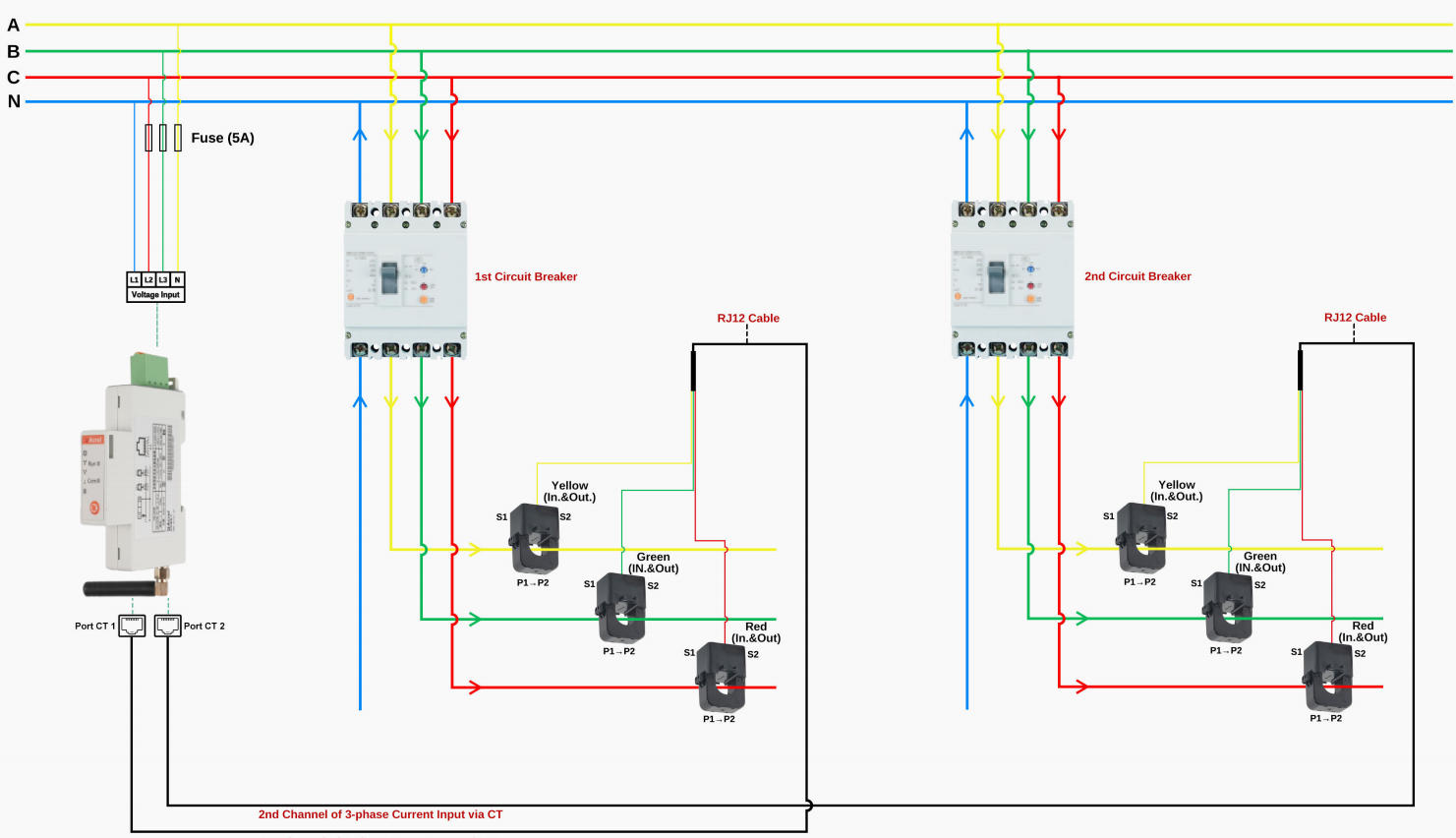

Wiring Diagram
