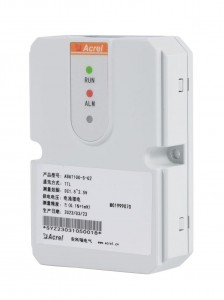

ABAT100 Series Battery Monitoring Devices
ABAT100 Lead-acid battery Status Monitoring Products
provide battery operating information such as battery voltage, internal resistance and internal temperature, including SOC and SOH
Acrel ABAT100 series battery online monitoring system can provide battery operating information such as battery voltage, internal resistance and internal temperature, including SOC and SOH, and can provide early warning and battery balancing for failed batteries to ensure battery backup power time and prolong battery life. The system has a monitoring function, and is very convenient for installation, maintenance and access. The system is mainly composed of ABAT100-S single battery monitoring module, ABAT100-C group It is composed of battery monitoring module, ABAT100-HS collector module and touch screen, through which alarms and real-time data can be queried, parameters can be set, etc., and a monitoring platform can be selected to realize networked centralized management.

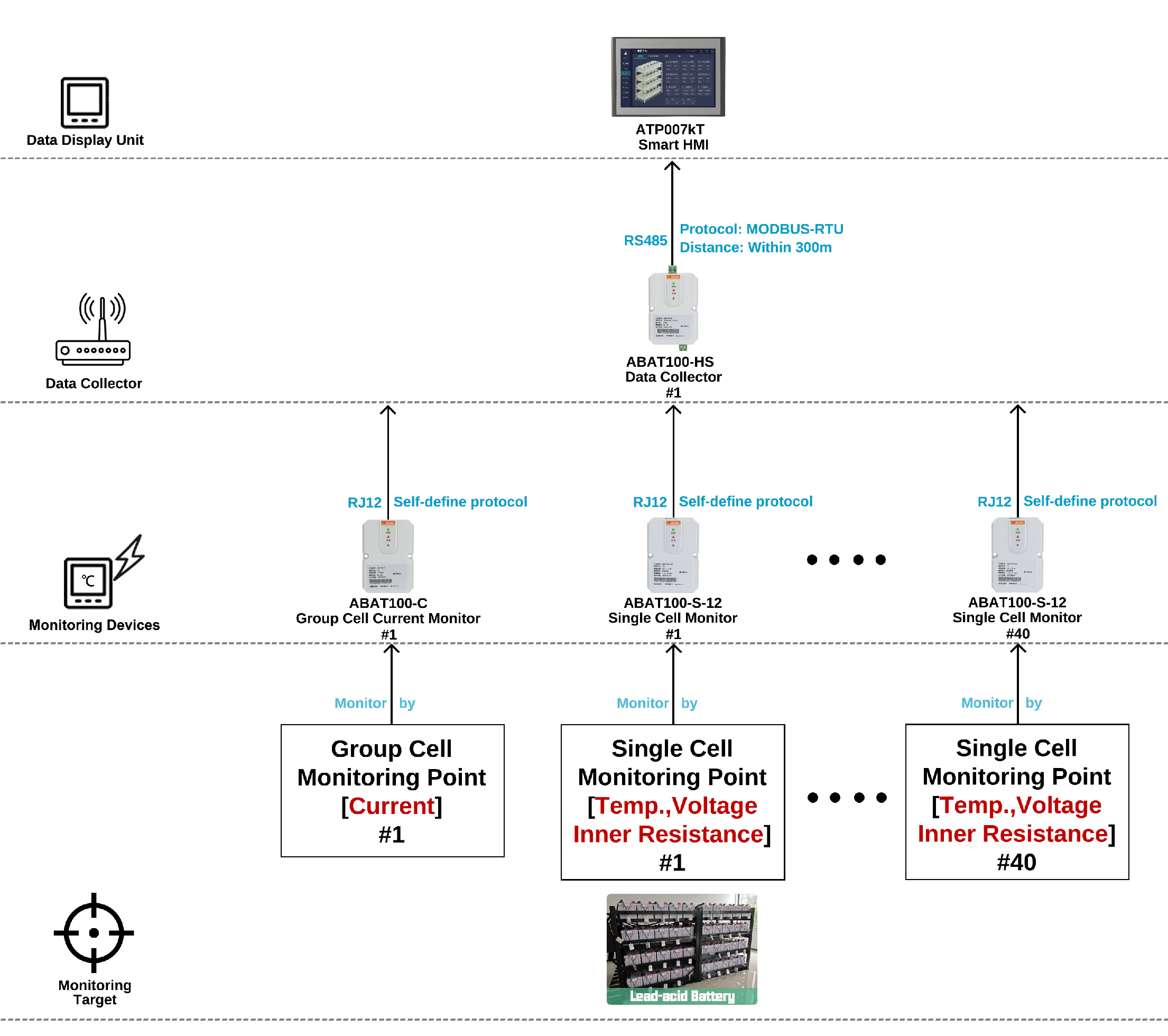

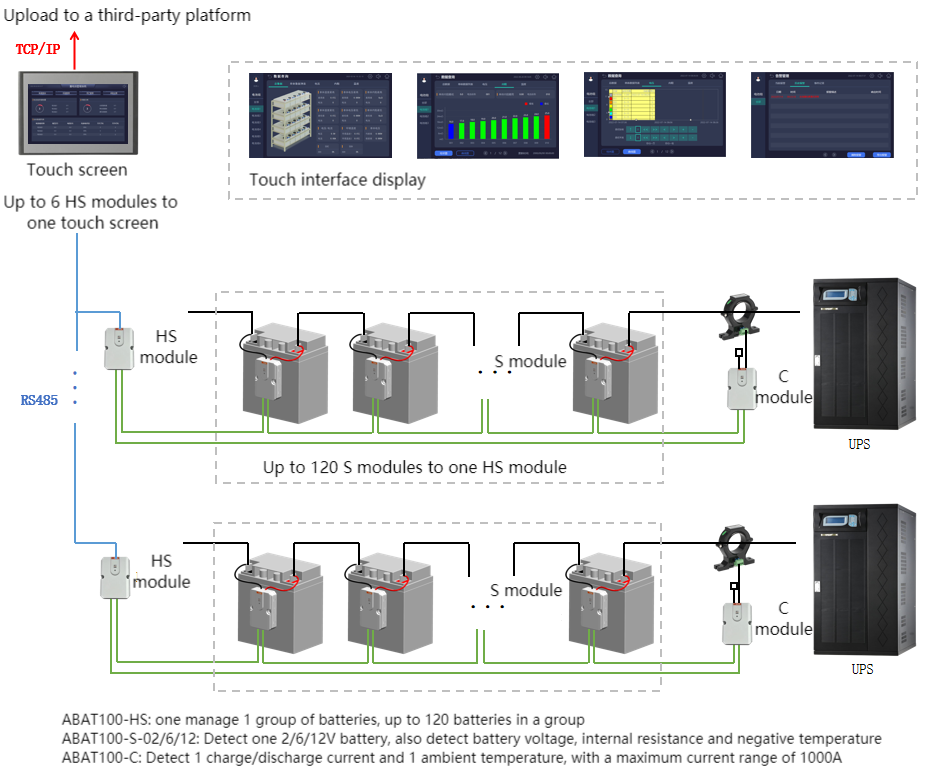

1)Touch screen serial port acquisition network solution

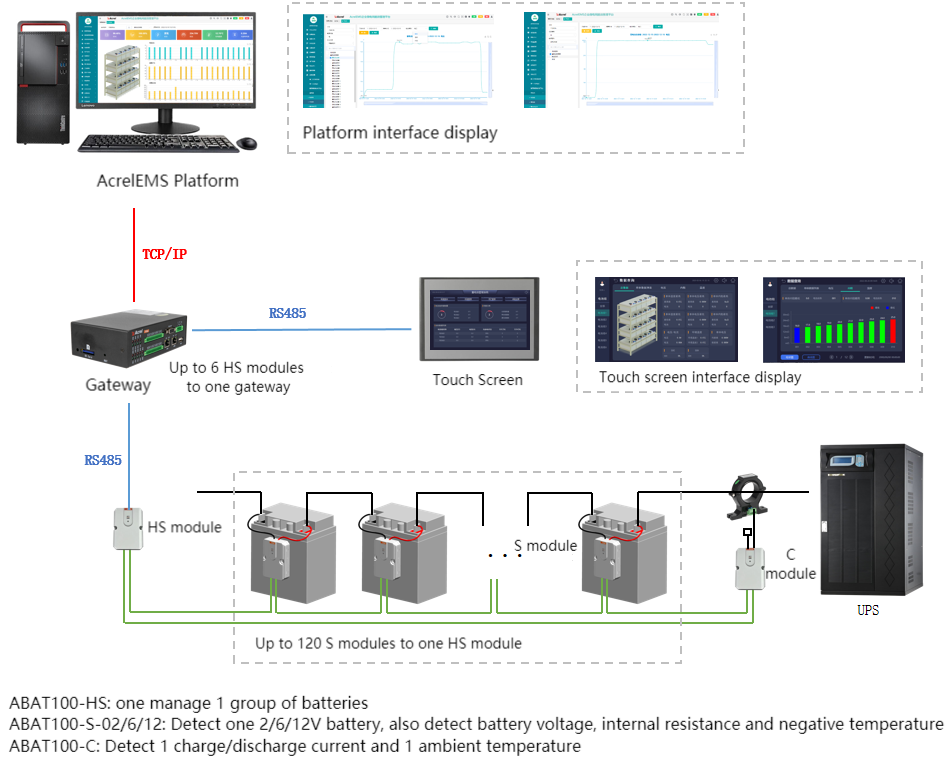

2) AcrelEMS, EIOT platform network solution
|
Model |
Function Description |
|
ABAT100-HS |
DC24V input, one to manage a group of batteries, up to 120 batteries in a group. |
|
ABAT100-S-02 |
Monitor one 2V battery, monitor battery voltage, internal resistance and negative terminal temperature. |
|
ABAT100-S-06 |
Monitor one 6V battery, monitor battery voltage, internal resistance and negative terminal temperature. |
|
ABAT100-S-12 |
Monitor one 12V battery, monitoring battery voltage, internal resistance and negative terminal temperature. |
|
ABAT100-C |
Monitor one charge/discharge current with an ambient temperature with a maximum current range of 1000A. |

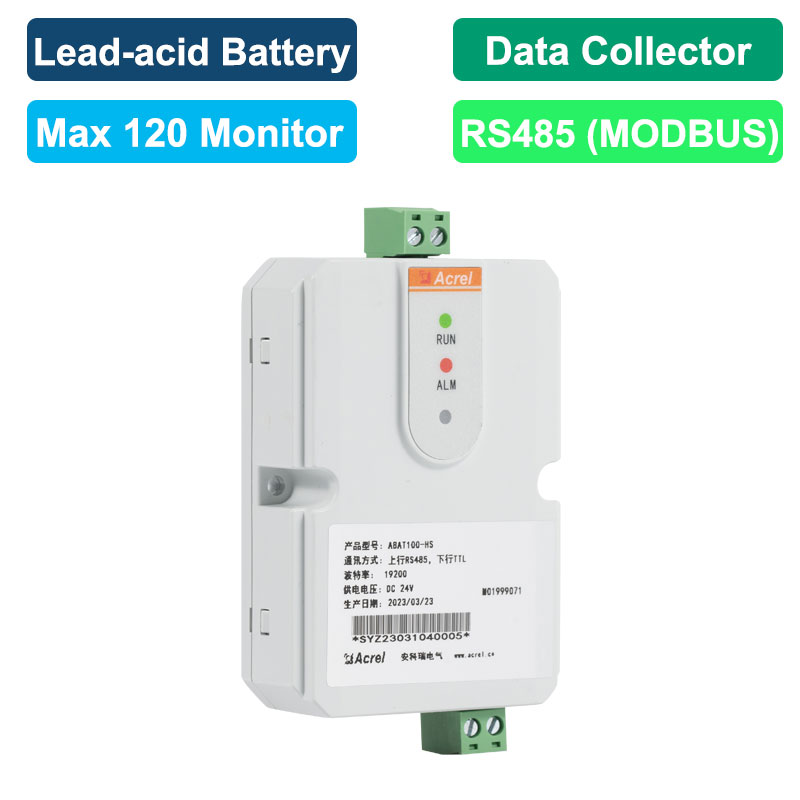

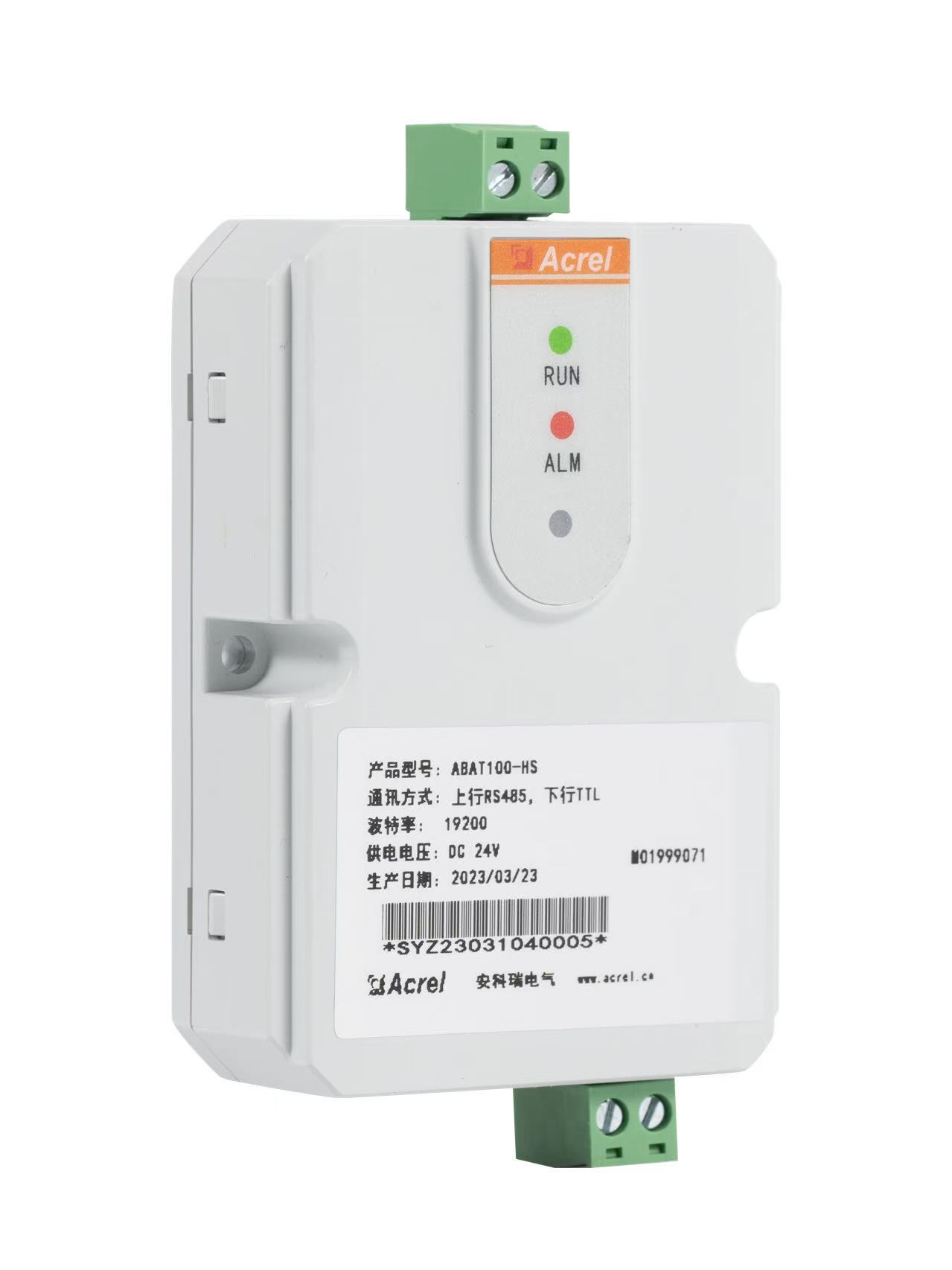

ABAT100-HS Collector Module
Application: Support collecting data from up to 120pcs battery cell monitor and further upstream data via RS485 [MODBUS-RTU]; analysing remaining battery capacity [SOC, SOH].
Upstream Methods: RS485 [MODBUS-RTU protocol]
Downsteam Methods: RJ12 (Self-defined protocol)
Power Supply: 24Vdc

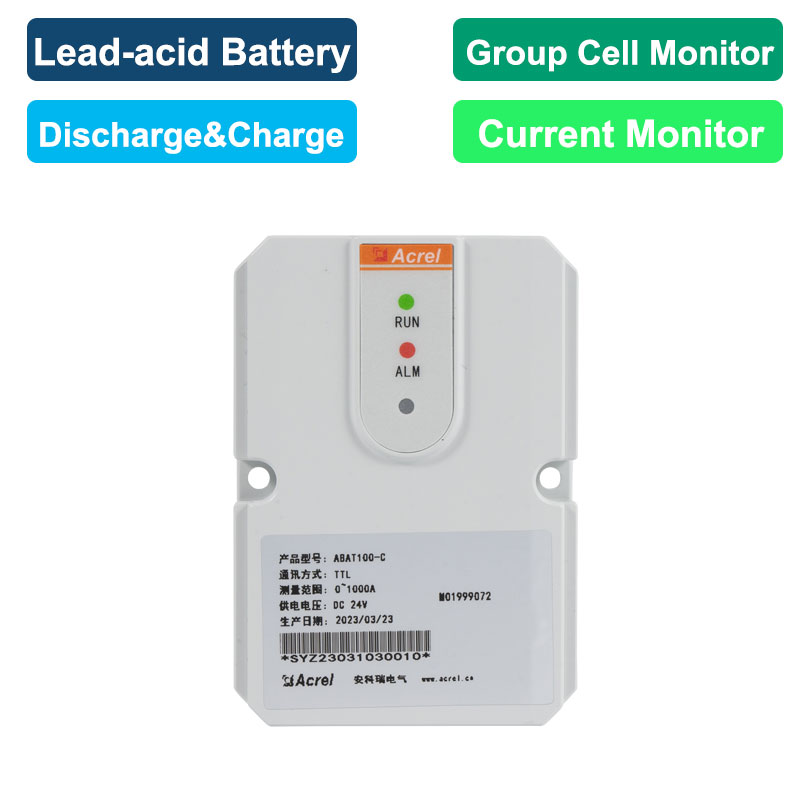

ABAT100-C Group Cell Current Monitor
Application: Monitor charge&discharge current data of one group of battery; moniotr ambient temperature.
Measuring Current Range: Max 1000A AC
Measuring Temperature Range: -5℃～+105℃
Accuracy: ±1% [Current]; ±1°C [Ambinet temperature]
Upstream Methods: RJ12 (Self-defined protocol)
Power Supply: 24Vdc

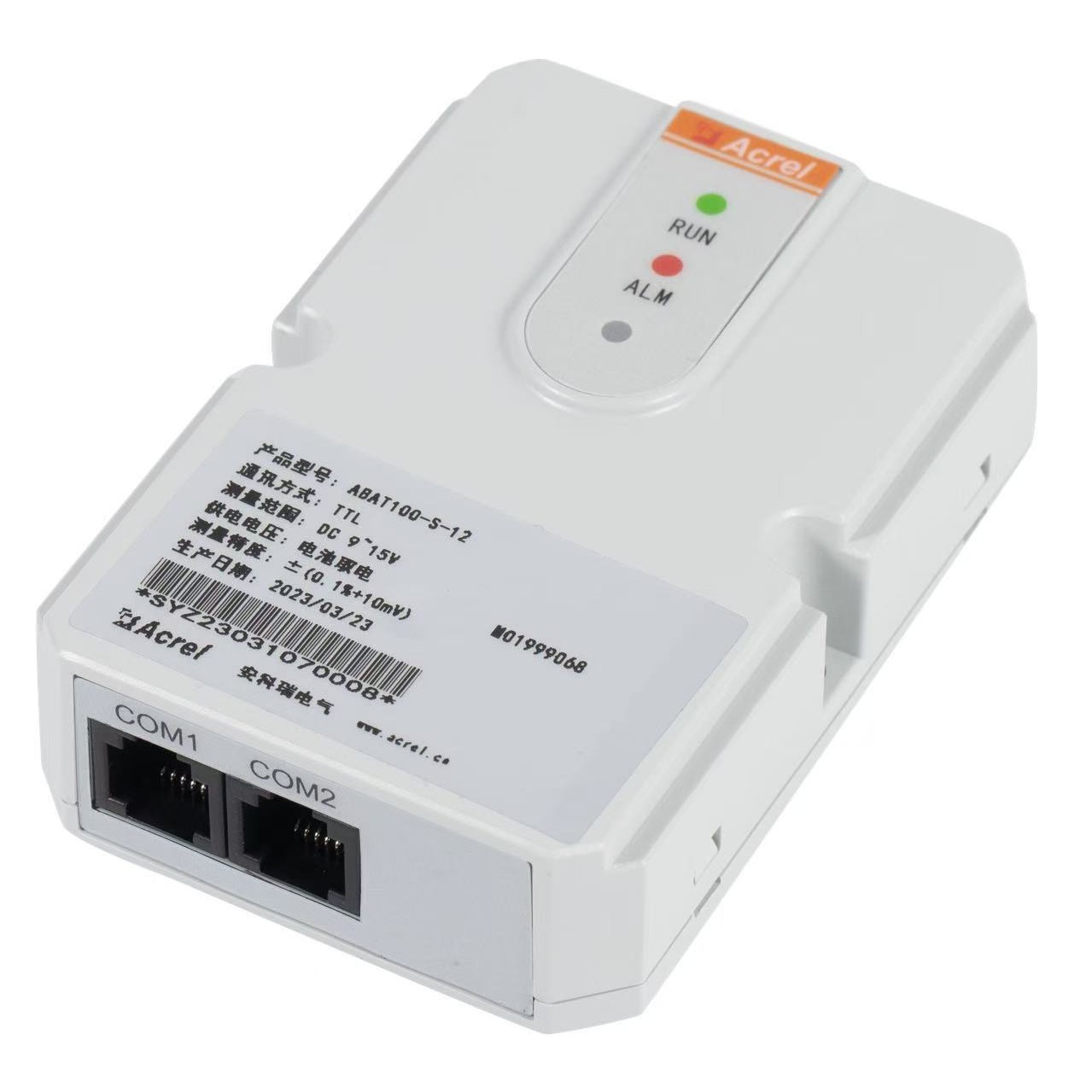

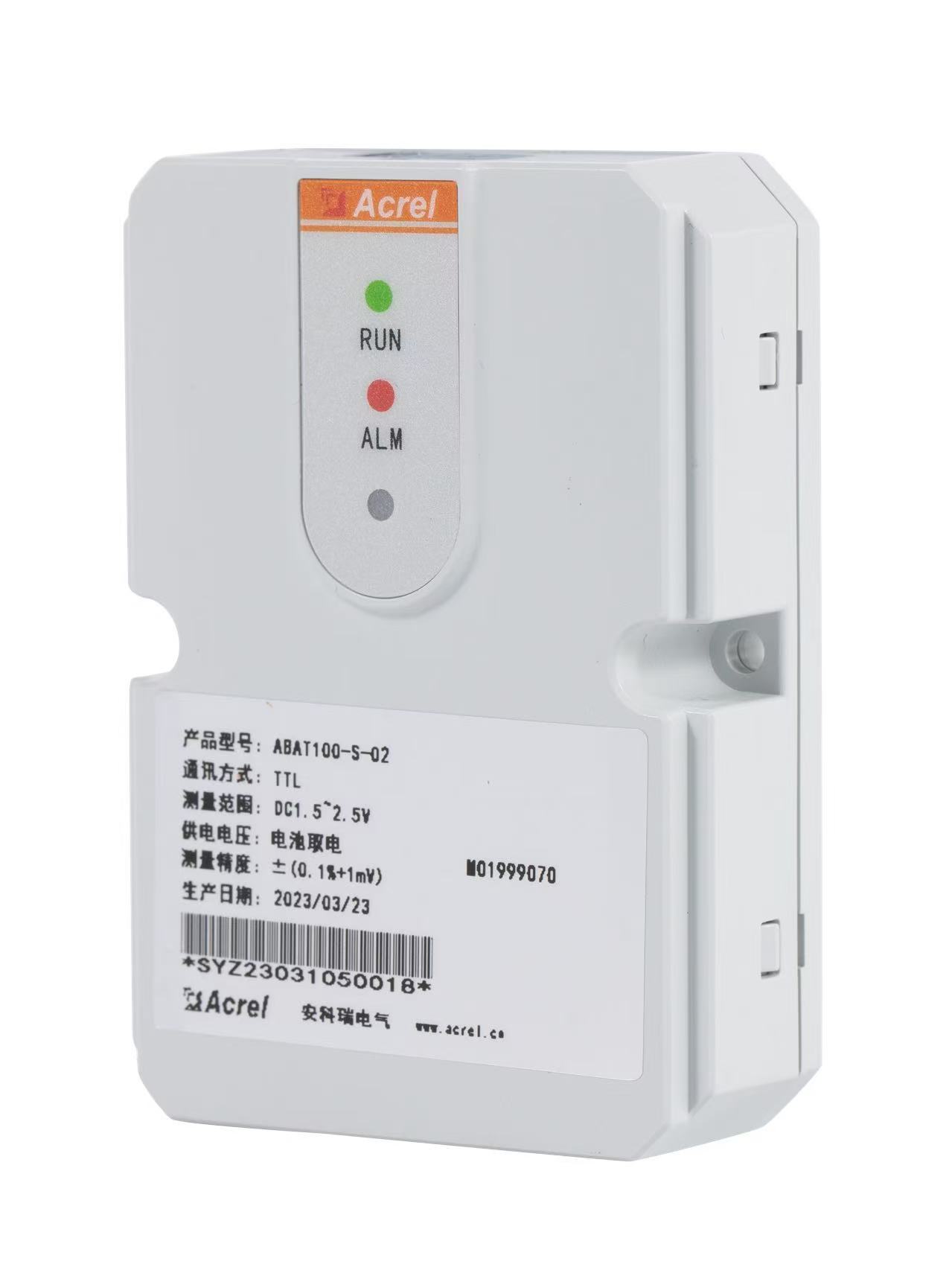

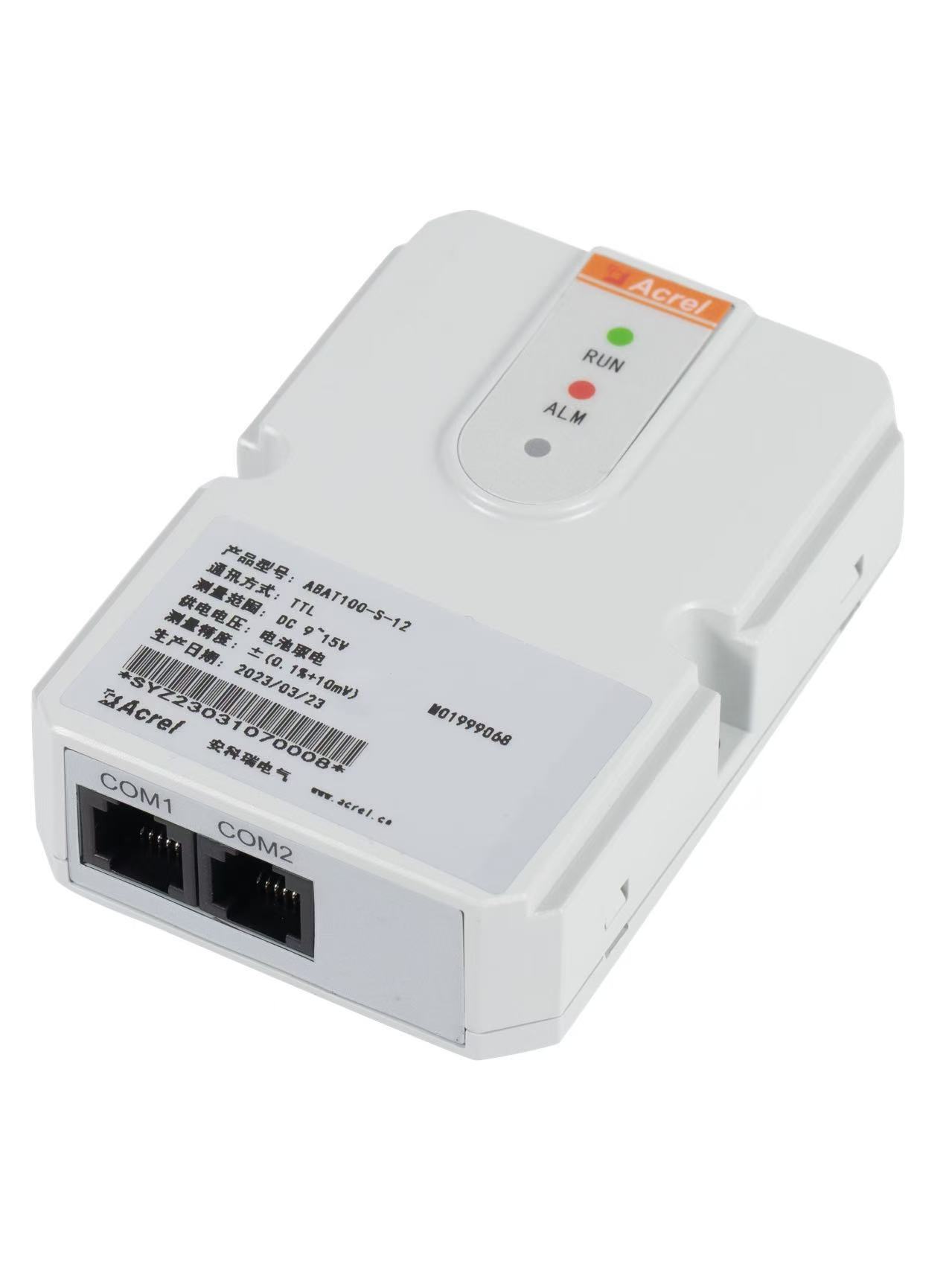

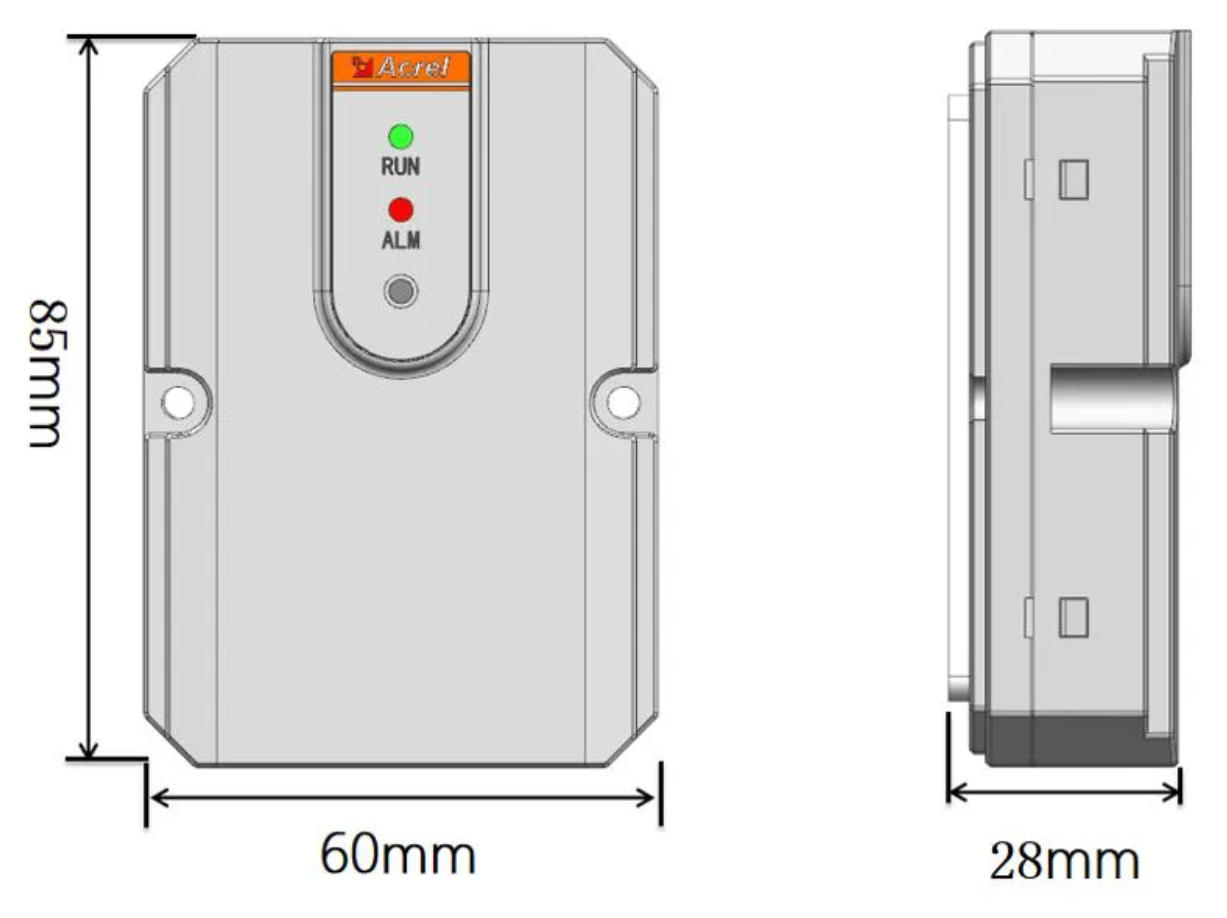

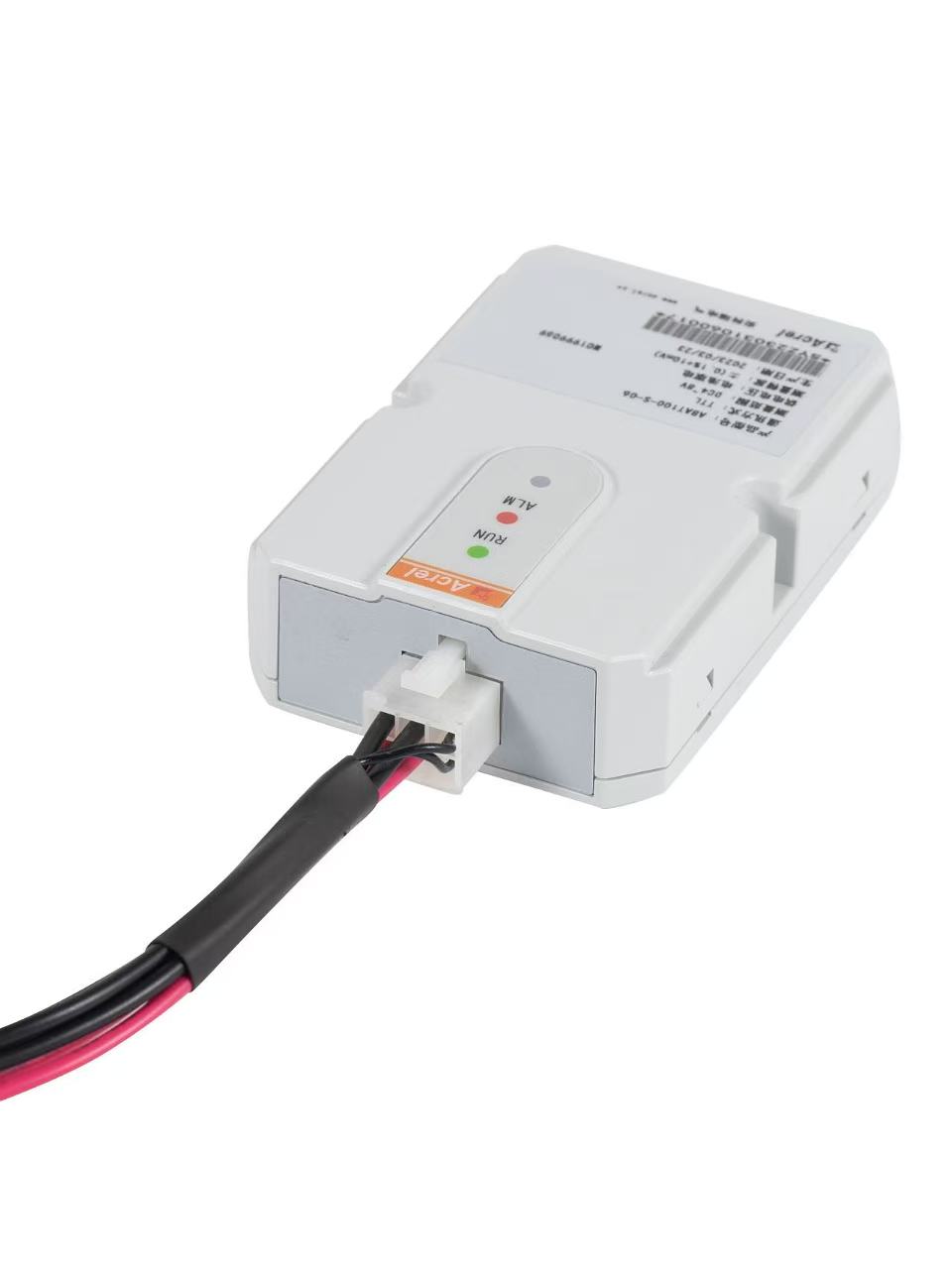

ABAT100-S Single-cell Monitor
Application: Monitor inner resistance, voltage,negative pole temperature of single cell.

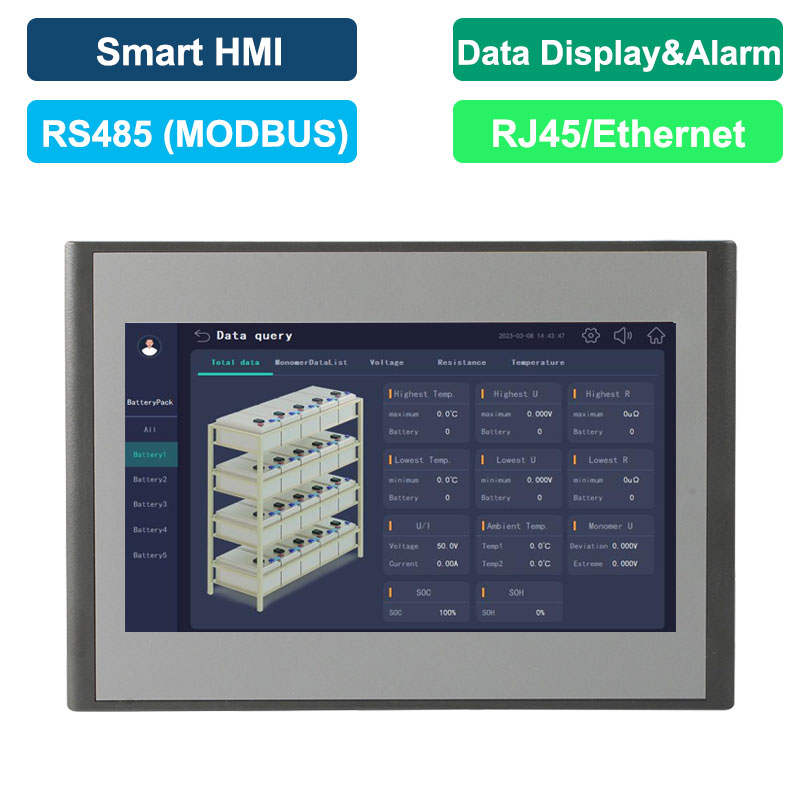

ATP007kT Smart HMI
Application: Display and alarm real-time battery data from cell monitor. [Support up to 6 pcs

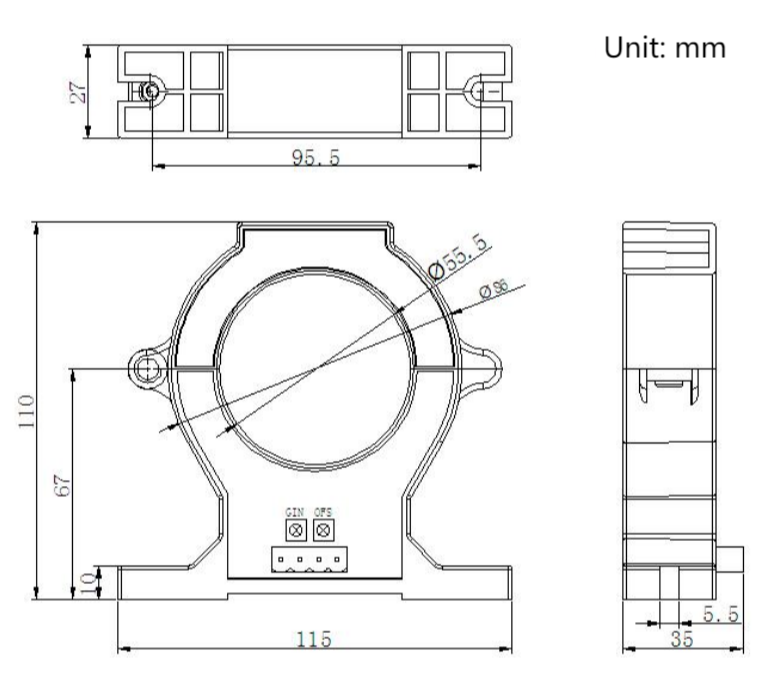

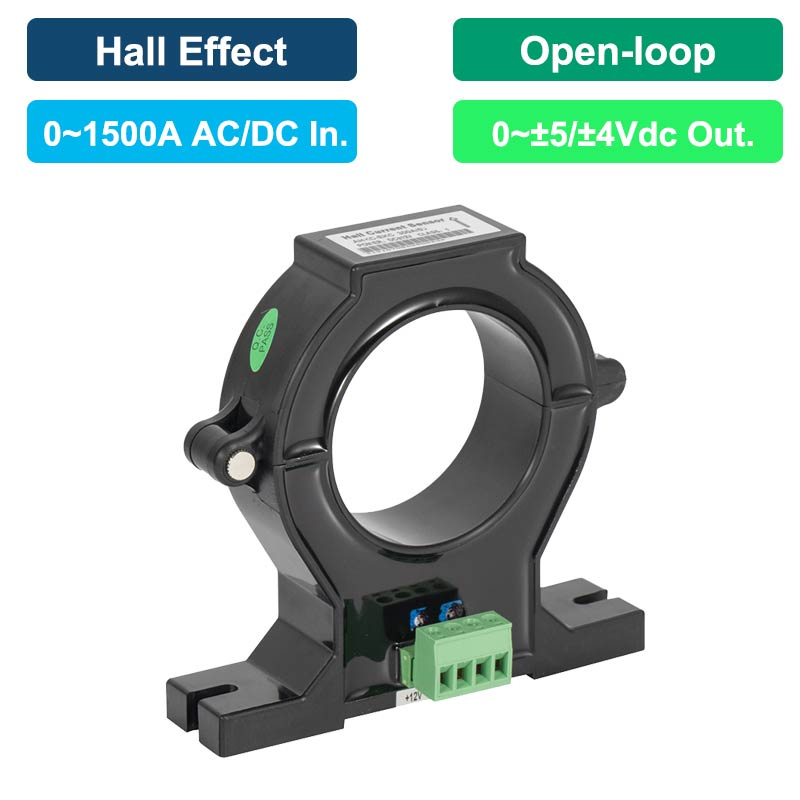

AHKC-EKC Split-core Hall Sensor
Application: Paired with ABAT100-C for current input
Current Input Range: 0~(500~1500)A DC
Current Output Range: ±5Vdc
Aperture: φ55.5mm

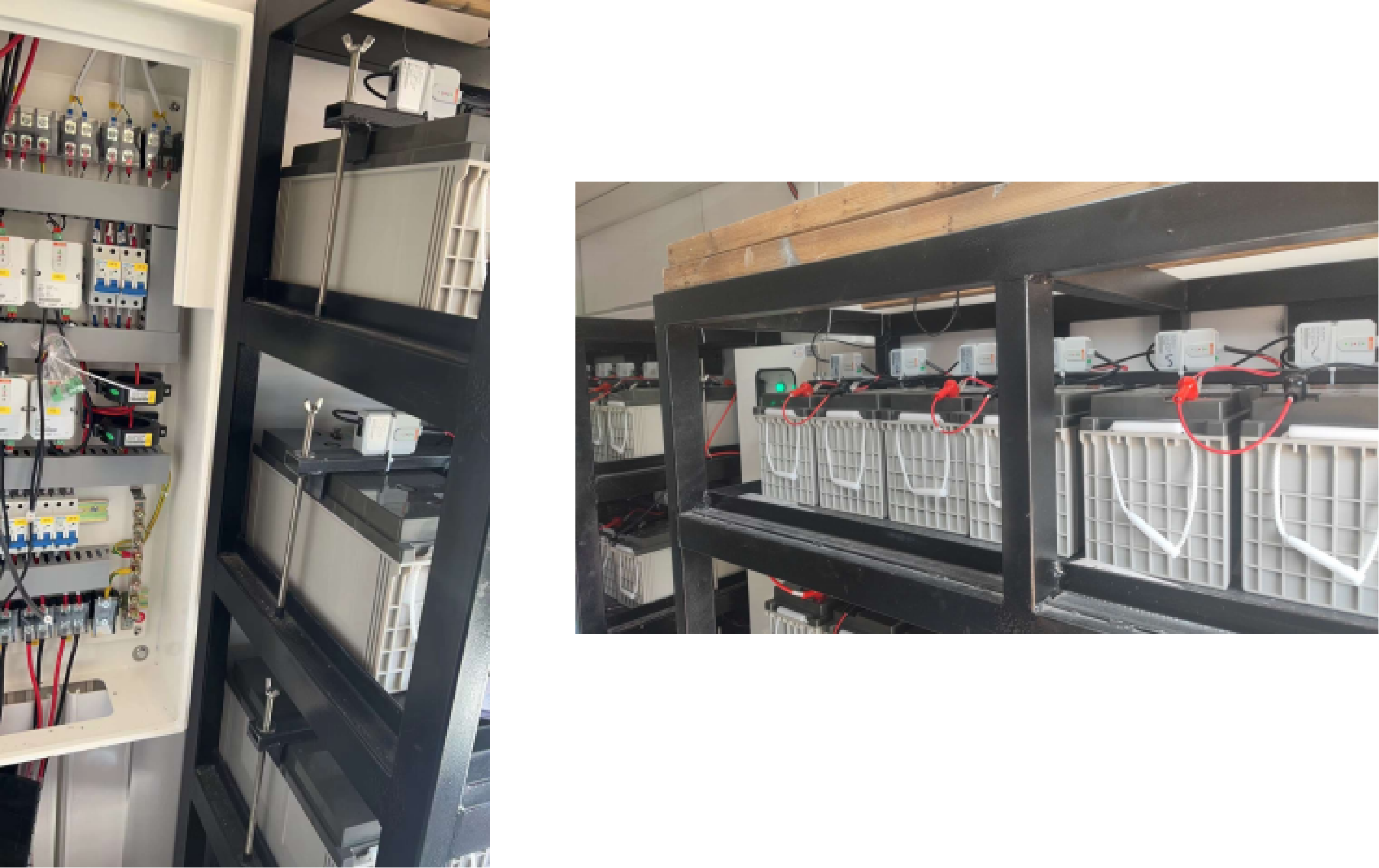

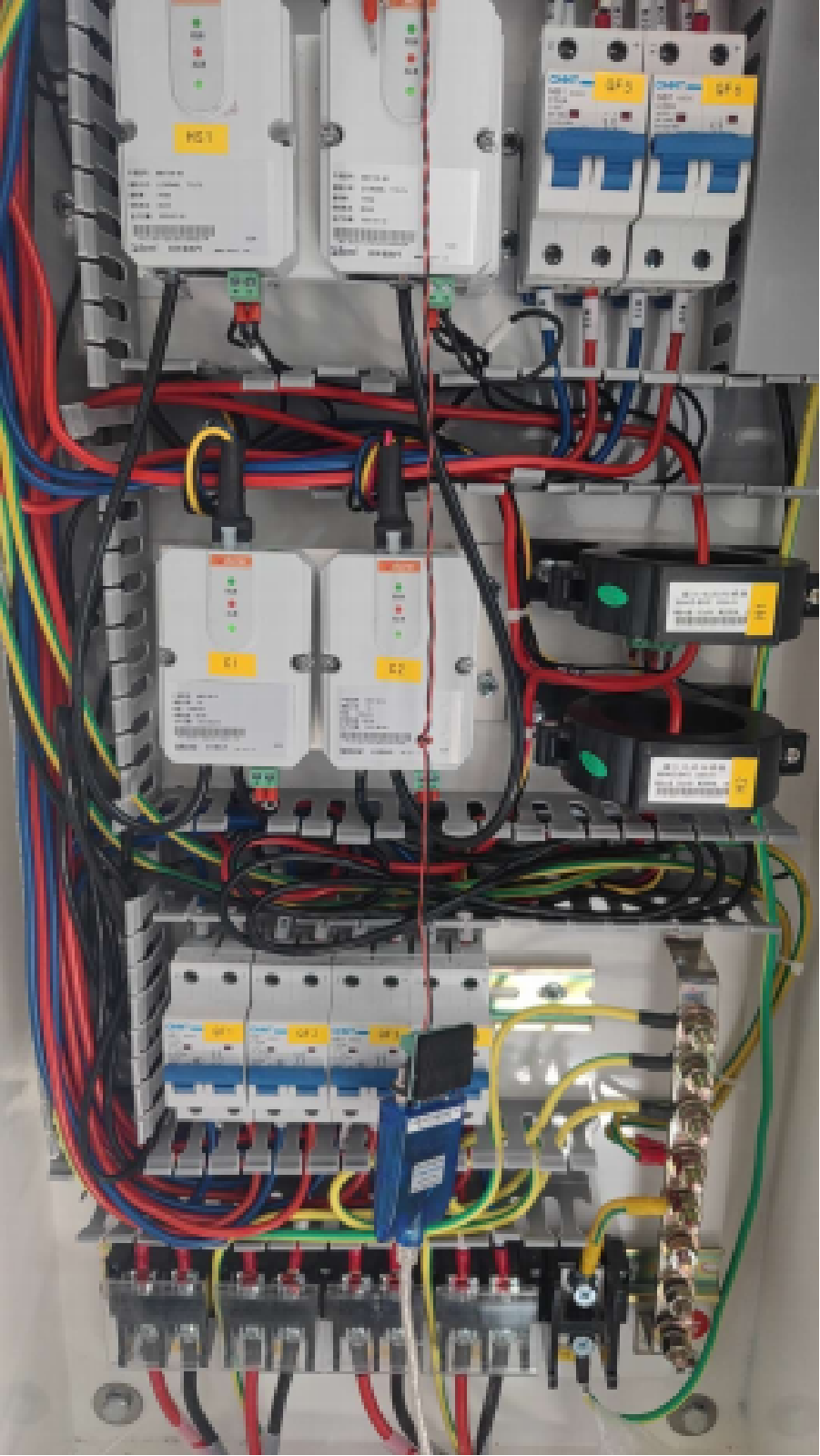

ABAT100 series module
AHKC-EKC series open type Hall current sensor
